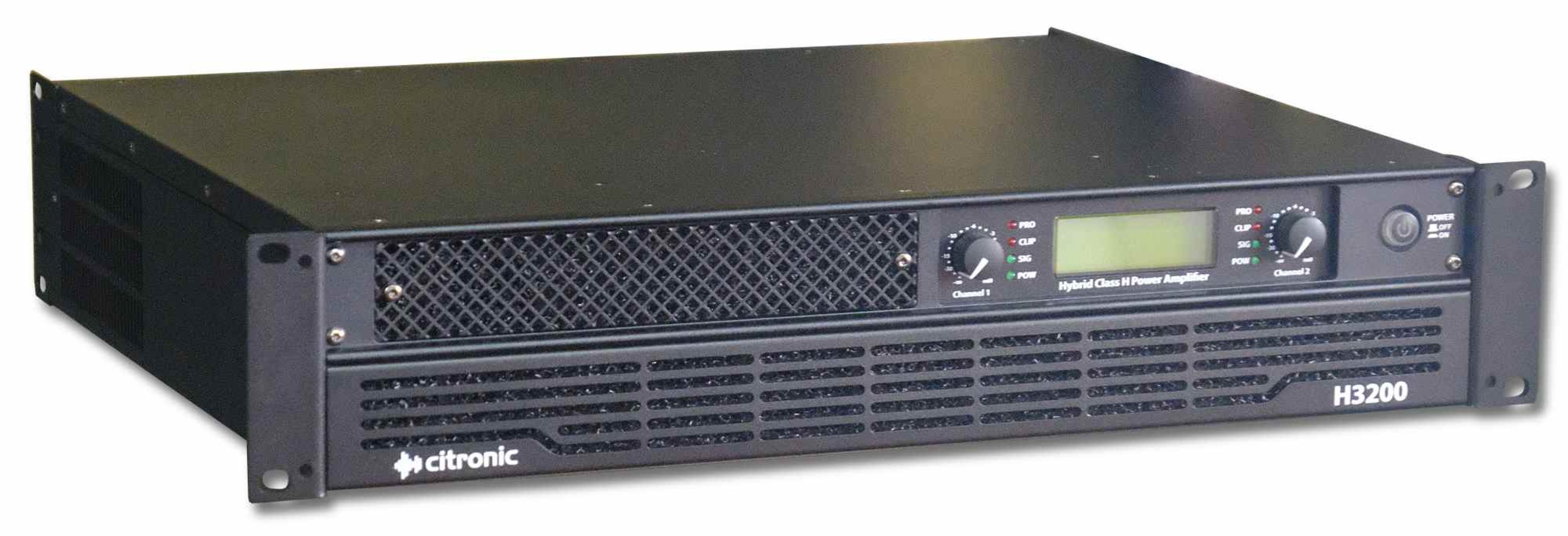

Citronic H3200

Hybrid class-H circuit design
Digitally controlled and monitored power section
Switchable 120Hz low-pass crossover
Backlit LCD status display
Full internal thermal and overload protection
Stable down to 2 Ohms (4 Ohms bridged)
Weight 8.9kg

Power rms bridge @ 8 Ohms 2400W
Power rms bridge @ 4 Ohms 3200W (40ms burst 1kHz sine)
Power rms @ 2 Ohms 2 x 1600W (40ms burst 1kHz sine)
Power rms @ 4 Ohms 2 x 1200W
Power rms @ 8 Ohms 2 x 800W

Fuse  T10AL 250V
Dimensions 483 x 361 x 88 mm (2U)
Power supply 200-240Vac, 50Hz (IEC)
Amplifier construction Hybrid Class-H
Protection Short/open circuit, thermal, RF, DC fault, on/off mute, active inrush
Frequency response 20Hz-20KHz ±0.5dB
Crossover Switchable full range or fixed 120Hz low-pass filter
THD +N 0.2%
S/N ratio -95dB
Damping factor >700
Input sensitivity 0.775V - 1.0V - 1.4V switchable
Input impedance 20KΩ (balanced),10KΩ (unbalanced)
